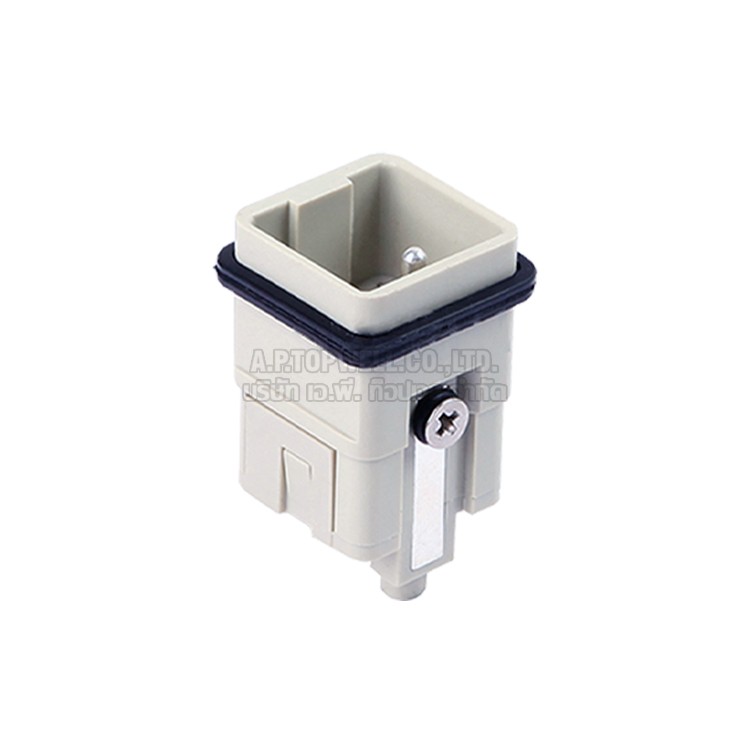

ปลั๊กไฟไส้ในตัวผู้ 5pin
| คุณสมบัติ |
|
| Specifications | ||
| Number of contacts | 5+PE | |
| Working current | 16A | |
| Working voltage | 230/400V | |
| Rated impulse voltage | 4KV | |
| Pollution degree | 3 | |
| Pollution degree 2 also Working voltage | 320/500V | |
| Insulation resistance | ≥1010 Ω | |
| Material | PolyCarbonate | |
| Flammability acc.to (UL94) | V0 | |
| Limiting temperatures | -40℃...+125℃ | |
| Mechanical working life (mating cycles) | ≥500 | |
| Working voltage acc.to UL/CSA | 600V | |
| Contacts | ||
| Material | Copper alloy | |
| Surface | Silver plated、Gold plated | |
| Contact resistance | ≤1mΩ | |
| Terminal | Crimp terminal | |
| Wire gauge | 0.14-4.0mm²(AWG26-12) | |
| PE Wire gauge | 2.5mm²(AWG14) | |
