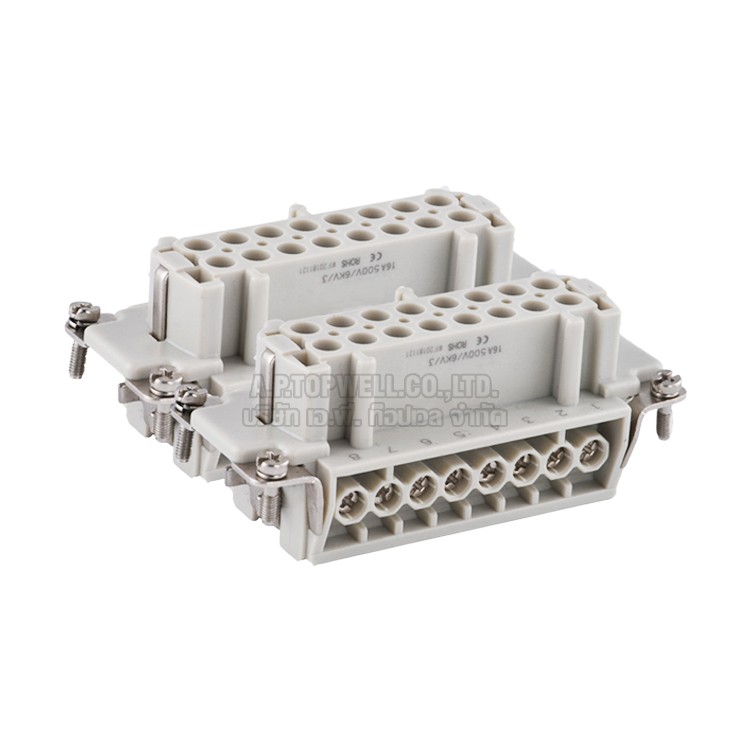

ปลั๊กไฟไส้ในตัวเมีย 32pin
| รายละเอียด |
|
| Specifications | ||
| Number of contacts | 32+PE | |
| Working current | 16A | |
| Working voltage | 500V | |
| Pollution degree | 3 | |
| Rated impulse voltage | 6KV | |
| Insulation resistance | ≥1010 Ω | |
| Material | PolyCarbonate | |
| Flammability acc.to (UL94) | V0 | |
| Limiting temperatures | -40℃...+125℃ | |
| Mechanical working life (mating cycles) | ≥500 | |
| Working voltage acc.to UL/CSA | 600V | |
| Contacts | ||
| Material | Copper alloy | |
| Surface | silver plated | |
| Contact resistance | ≤1mΩ | |
| Terminal | Screw terminal | |
| Wire gauge | 1.0-2.5mm²(AWG18-14) | |
| Screw terminal tightening; | 0.5Nm | |
| Stripping length | 7-9mm | |
